SKU
ELHB2-155W1023cws
Model No. ELHB2-155W1023cws
Commercial LED 90/130/155 Watt Linear High Bay 2 Color & 3 Wattage Selectable
90/130/155 Watt, 12150-20925 lm,V, 80 CRI
Mix and Match between 2 colors and 3 wattage options with switch
IP20 protection for indoor
Register to quote
No items found.
No items found.
No items found.
No items found.
Description
155W LED Linear High Bay Light, delivers 135 lm/W at 4000K and 5000K, with a CCT selectable of 4000-5000K. Featuring 3 adjustable wattage settings (155W, 130W,90W), this light ensures energy efficiency and flexibility for various applications. Certified with ETL and DLC 5.1 Premium, it’s a reliable solution for industrial and
commercial lighting needs.
Warranty
5 Years
Application

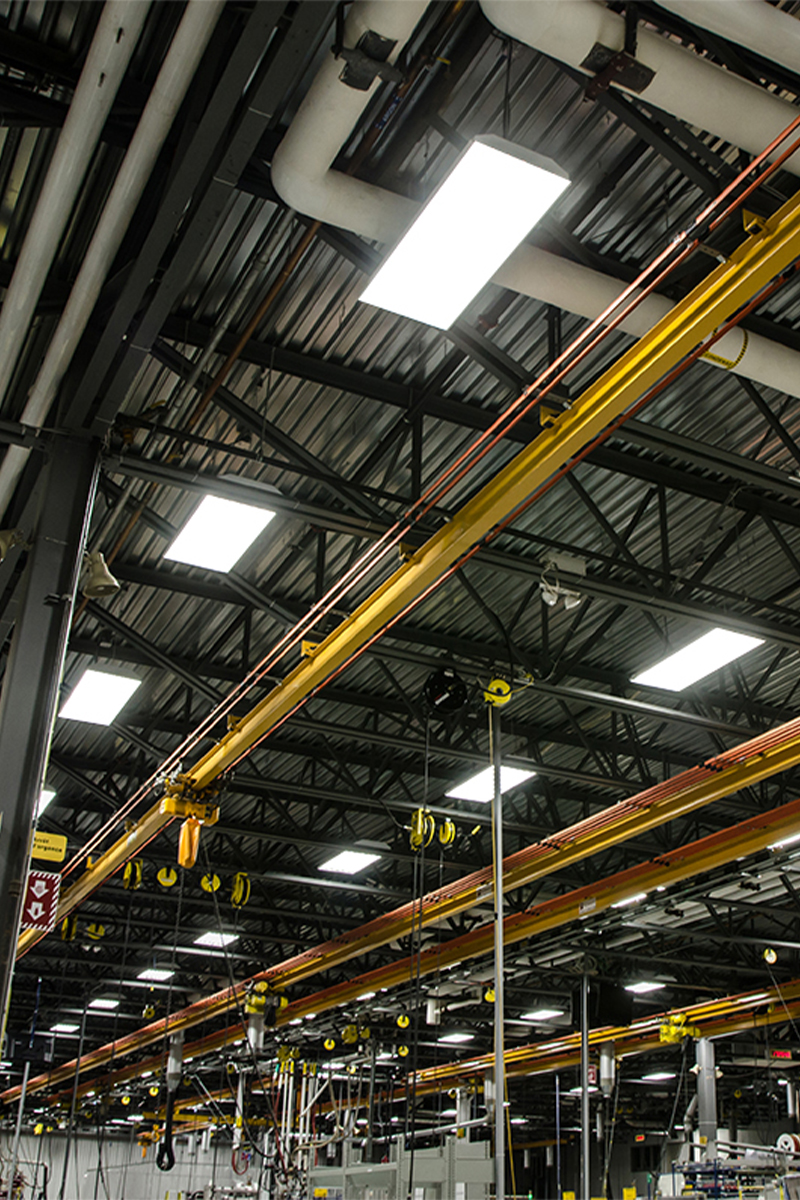

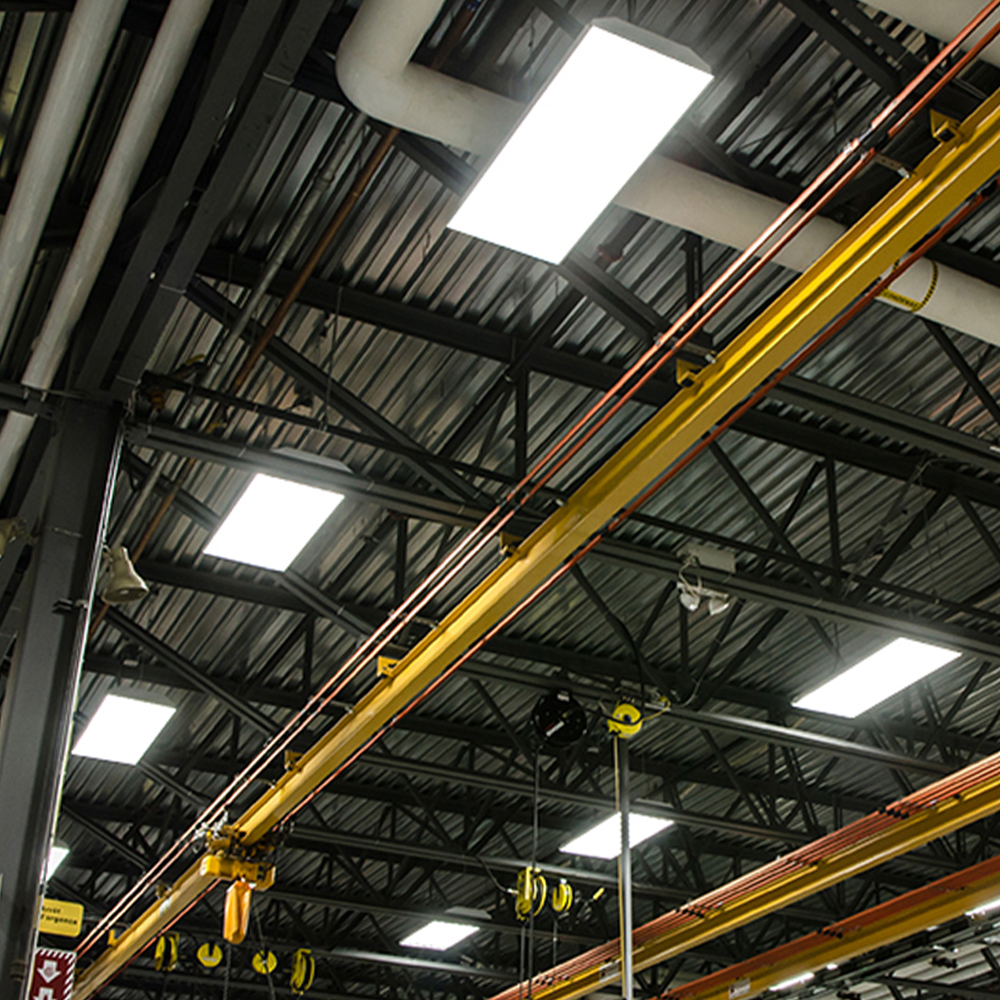

Garage, Warehouse, Commercial Buildings
Lumens
12150
LM
17550
LM
20925
LM
LM
LM
LM
CRI
80
Lifespan
50,000 Hours
120-277 V
Wattage - 90/130/155W
Wattage Equivalence - N/A
Lumen Output - 12150 - 20925 lm
CRI - 80
Power Factor - 0.9
Voltage - 120-277V
Beam Angle - 90°
Selectable CCT - 4000K/5000K
Luminous Efficacy - 135 lm/W
Input Current - 1.435 A
Lamp Lifespan - 50,000 Hours
Location Rating - Damp Rated

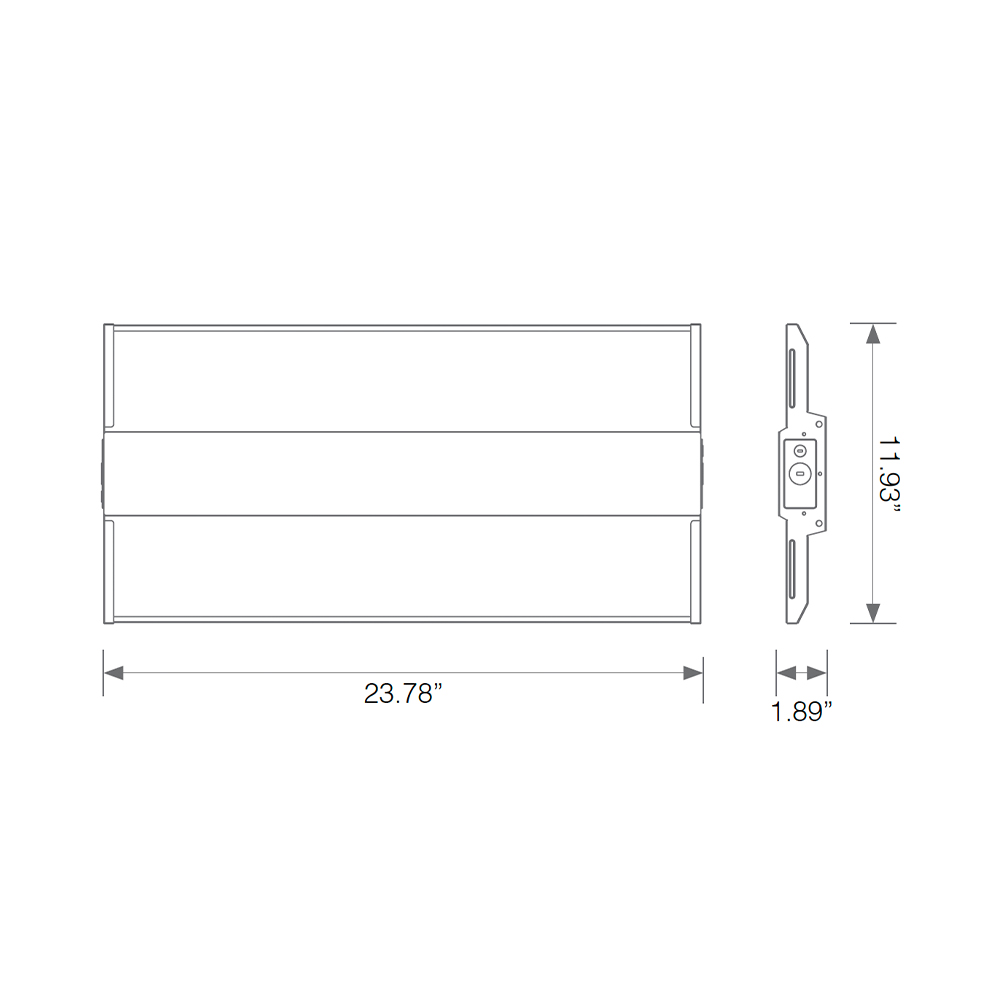

Size - 23.78”(W) x 1.89”(D) x 11.93”(H)
Dimmable - 0-10V Dimmable
Warranty - 5 Years
No items found.
Features
Model No. ELHB2-155W1023cws
Inner Box: 1 qty
Master Box: 1 qty
Weight: Product - 4.20 lb / Master Box - 4.40 lb
MOQ: N/A
2 CCT & 3 Wattage Selectable
Choose through warm to bright white color options (4000K/5000K) and 3 Wattage (90W/130W/155W) for up to 9 brightness options.
